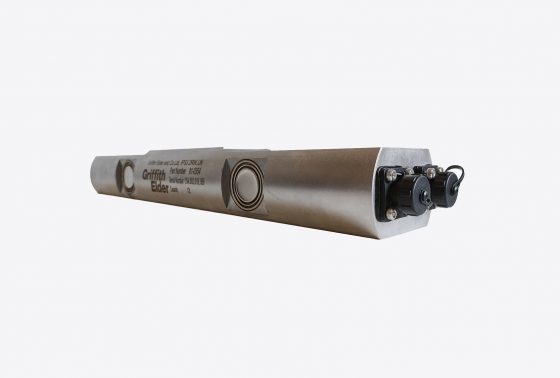

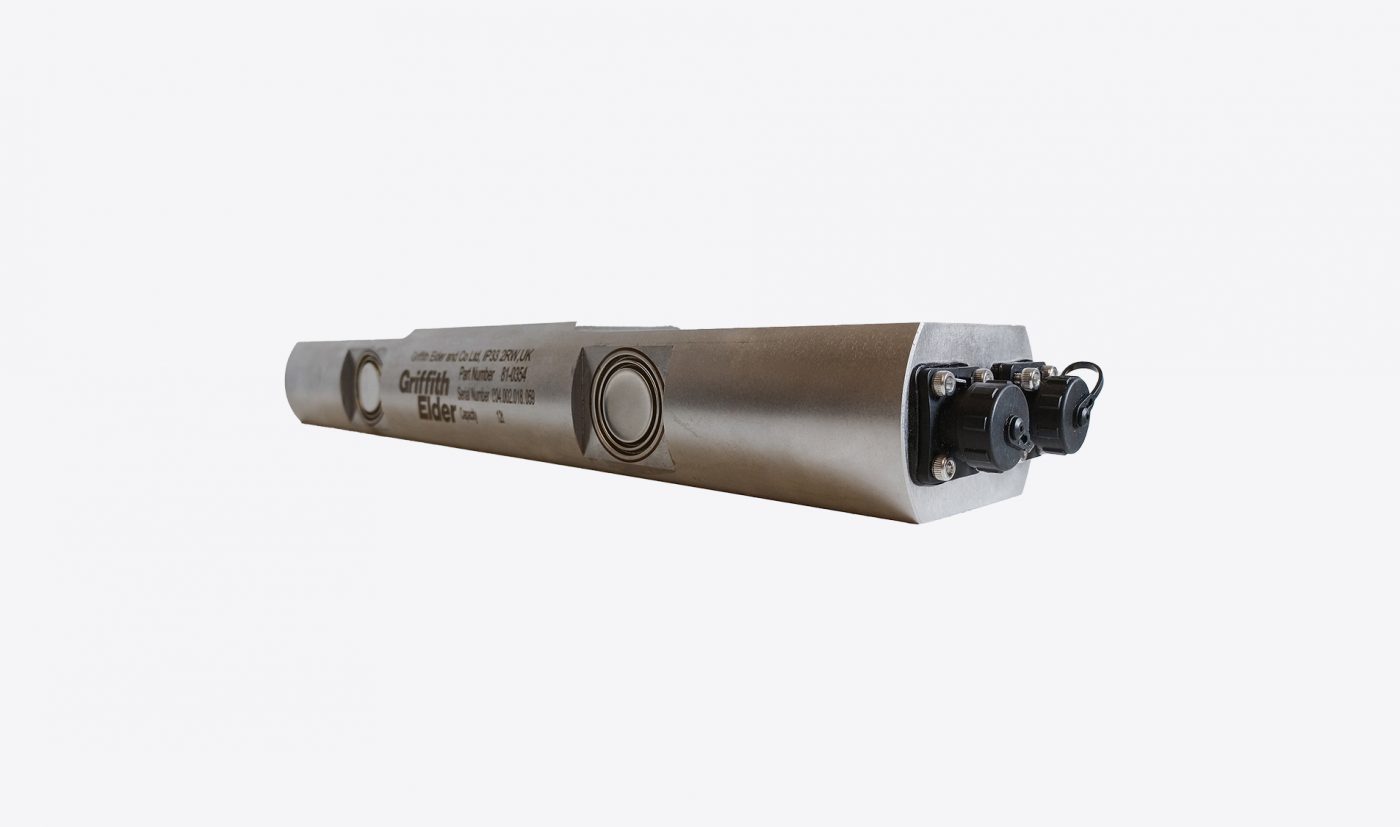

Double Ended Shear Beam Load Cell

Contact us on: +44 (0)1284 719619 or sales@griffith-elder.com to find out more information about our spare parts.

Model:	DE: Double Ended Shear Beam
Capacity:	6T, 12T, 20T
Material:	C: Carbon Alloy Steel
Type:	A: Analogue D: Digital
Temperature Range:	-40 to +70°C
Overload:	Safe: 150% Maximum: 300%
Cable	A: 10 metres screened (33 feet) D: Connector
Ingress Protection:	Sealed to IP68
Excitation:	Recommended: 5V to 12V dc Maximum: 15V dc
Output at Rated Load	A: 2 mV/V ± 0.1% D: Weightel™ Protocol
