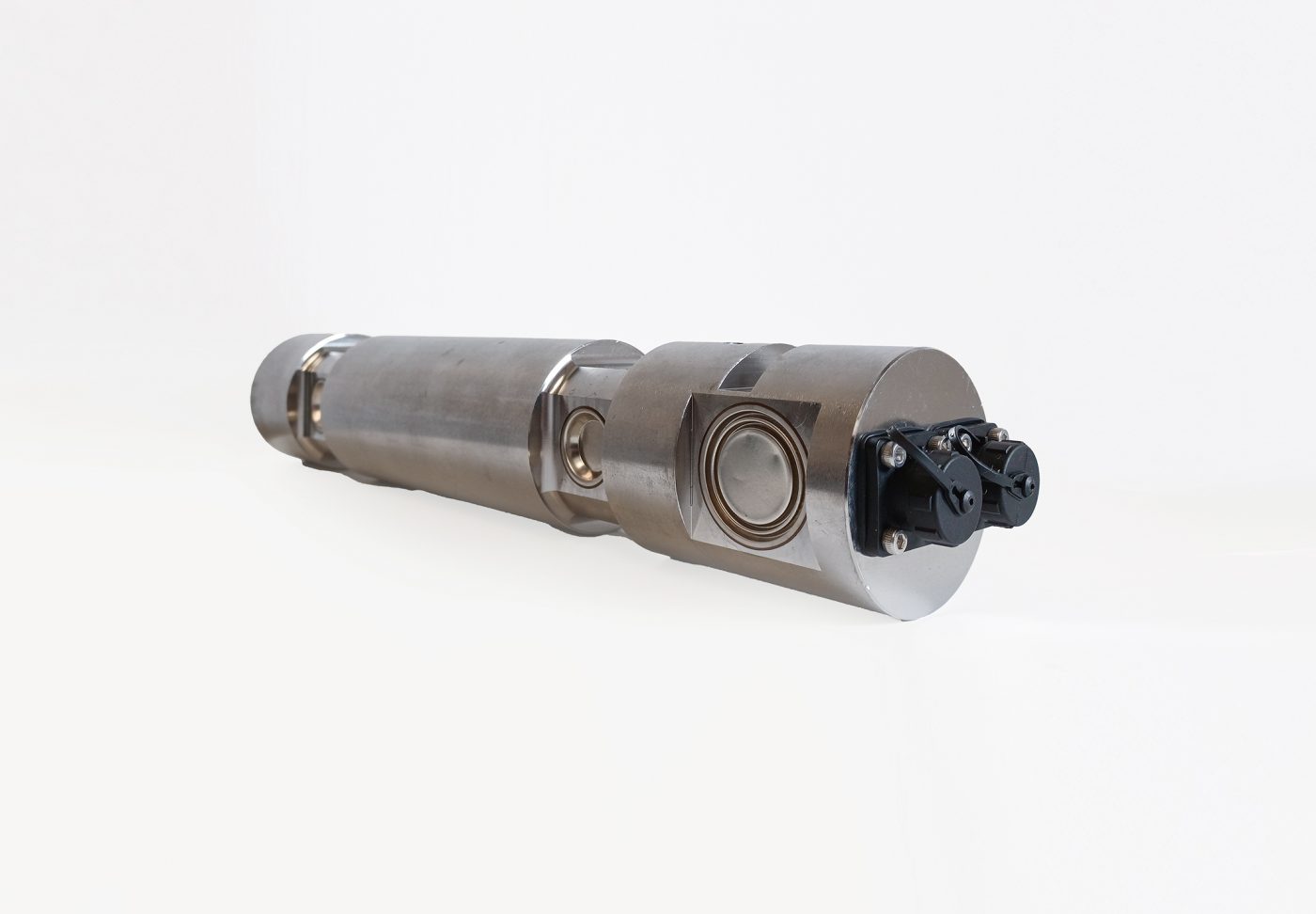

Pin Load Cells

Contact us on: +44 (0)1284 719619 or sales@griffith-elder.com to find out more information about our spare parts.

Capacity:	15 – 20T
Material	C: 2CR13 Alloy Steel. S: Stainless Steel 17-4 ph
Type	A: Analogue D: Digital
Temperature Range	-40 to +70°C
Overload:	Safe: 150% Maximum 300%
Cable	A: 10 metre screened (33 feet) D: Quicklock Connector (IP68)
Ingress Protection	Sealed to IP68
Excitation:	Recommended: 10V to 12V dc Maximum: 15V
Output at Rated Load:	A: 2 mV/V ± 0.1% D: Weightel Digital Protocol
Accuracy	Plus or minus 0.01%
