Weighbus Overload Protection

The Weighbus Overload Protection Software is simple to use, reducing errors and the risk of data loss. The truck is weighed as it enters the site, the truck data is captured by the weighbridge, and if overloaded the truck is directed elsewhere. If it is within allowable limits then the vehicle is directed back to the road.

Known values are automatically filled in on the ticket to minimise errors.

• Password protected, only authorised personnel can operate.
• User groups and permissions can be designed by management to restrict operation and menu access as required.
• Administrators have complete privileges to the settings and functions of the software.
• Embedded web server product – log in and operate from any PC.
• Audit trail for every single data entry, (e.g. the vehicle registration on the record) detailing who carried out the entry and what was entered.
• Software uses on-premise web server, with scheduled back ups saved to another location reducing data loss.

The Weighbus Overload Protection software is compatible with Single Axle Weighbridges. Alternative versions of our Weighbus software are also available, including Industrial and Law Enforcement versions, to ensure the software can meet the demands of varying sectors in the weighing industry.

Additionally, Weighbus software is available for our Full Size Weighbridges.

The software is available in a wide range of languages. Please send any requests to Griffith Elder, we will endeavour to accommodate your language option.

The Weighbus Overload Protection Software has customisable tickets, and printed tickets can be modified as required. This allows managers to select the information that is required to appear on the ticket.

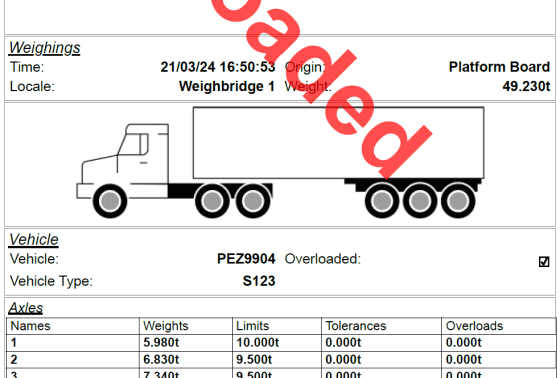

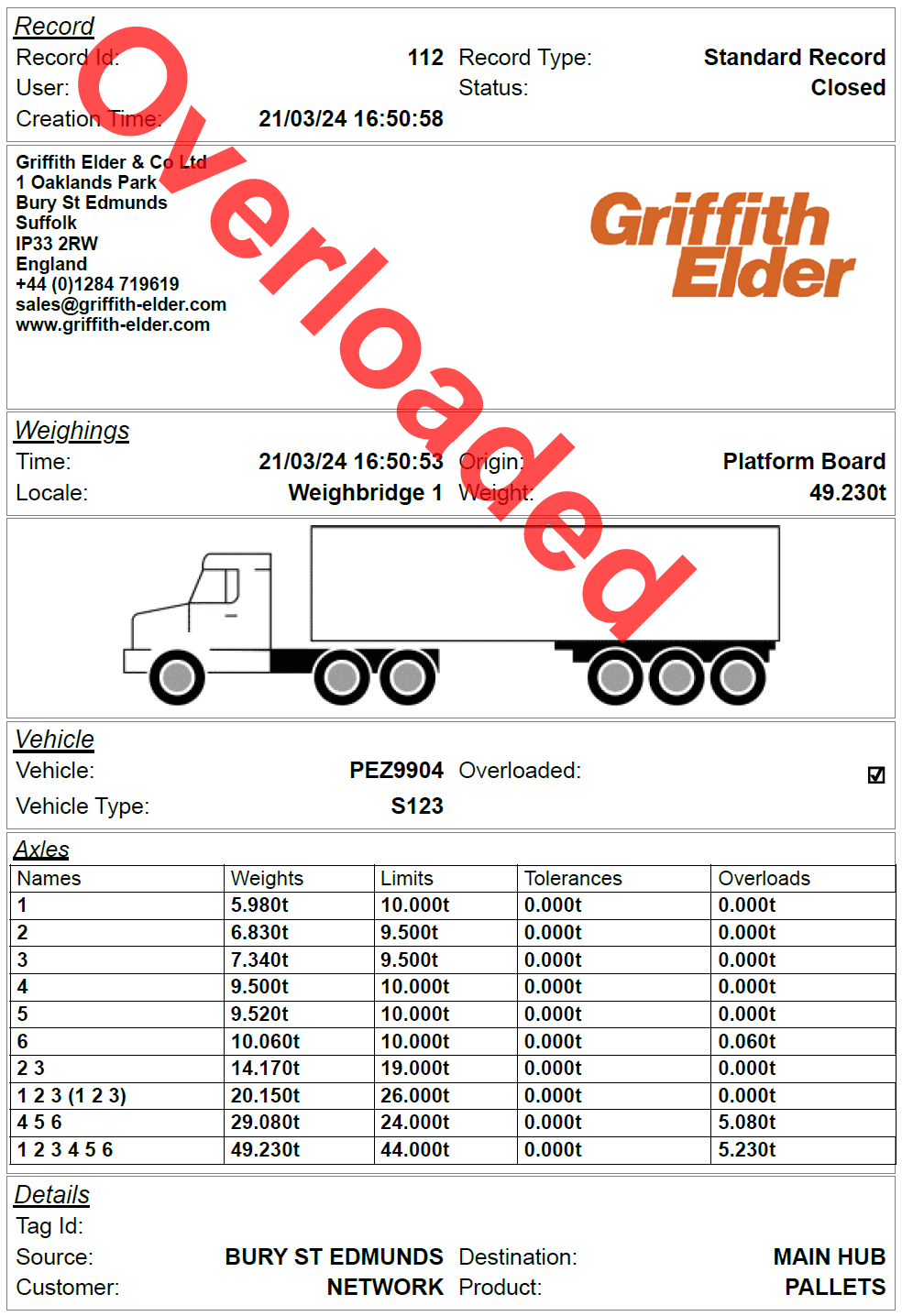

Printed tickets show sequential record number, all weighing data and data entered by default. See overloaded vehicles at a glance, and pinpoint overloaded axles. Overloaded vehicle tickets must be resolved, and vehicles are directed not to leave within traffic light system.

The advanced features can be hidden when not required.

Weights and other data are stored in the database for detailed reporting.

The reporting function allows all or some tickets to be selected based on criteria such as: date, vehicle, weight and any item found on the ticket. Unlimited report types can be configured, for example to select all of the information for one product over a monthly period.

CSV file, camera images and ticket html files can be automatically exported for each closed record, sent directly to drivers and managers.

The software can be linked to our traffic lights, large displays, cameras, ANPR cameras, road barriers and touchscreen terminals. These are fully automated to function when the operator finishes a ticket.

Cameras are set up to take a snapshot with every weighing, images are stored in the database with weight record. ANPR recognition for license plates are available also. Registration results & ANPR images are saved in the database. Changes to the entry can be reported & fully audited.

Traffic lights and large display systems direct vehicles through the weighing process. If overloaded the truck is directed into the police compound, if it is within allowable limits then the vehicle is directed back to the road.
