Tipper Weigher

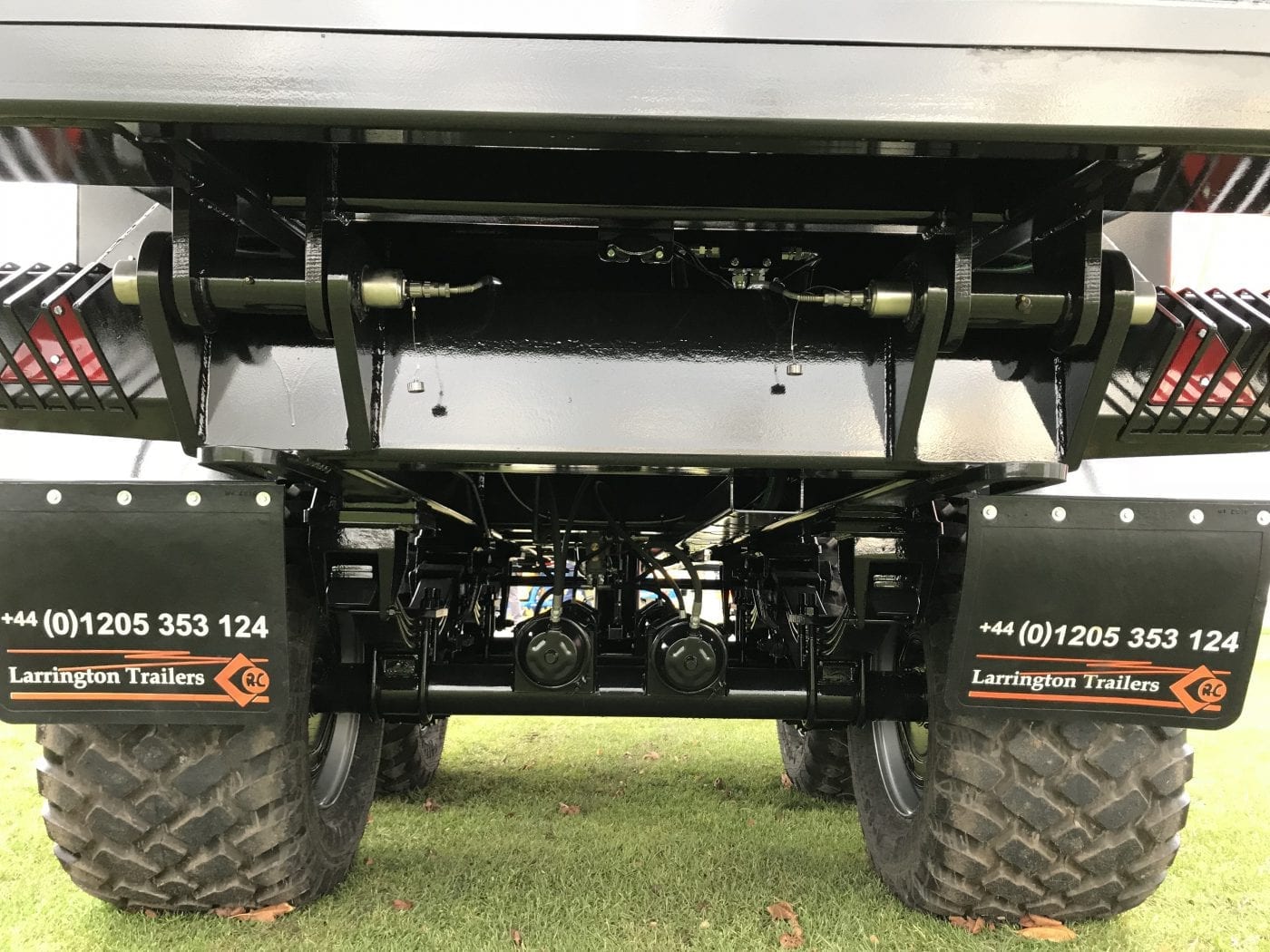

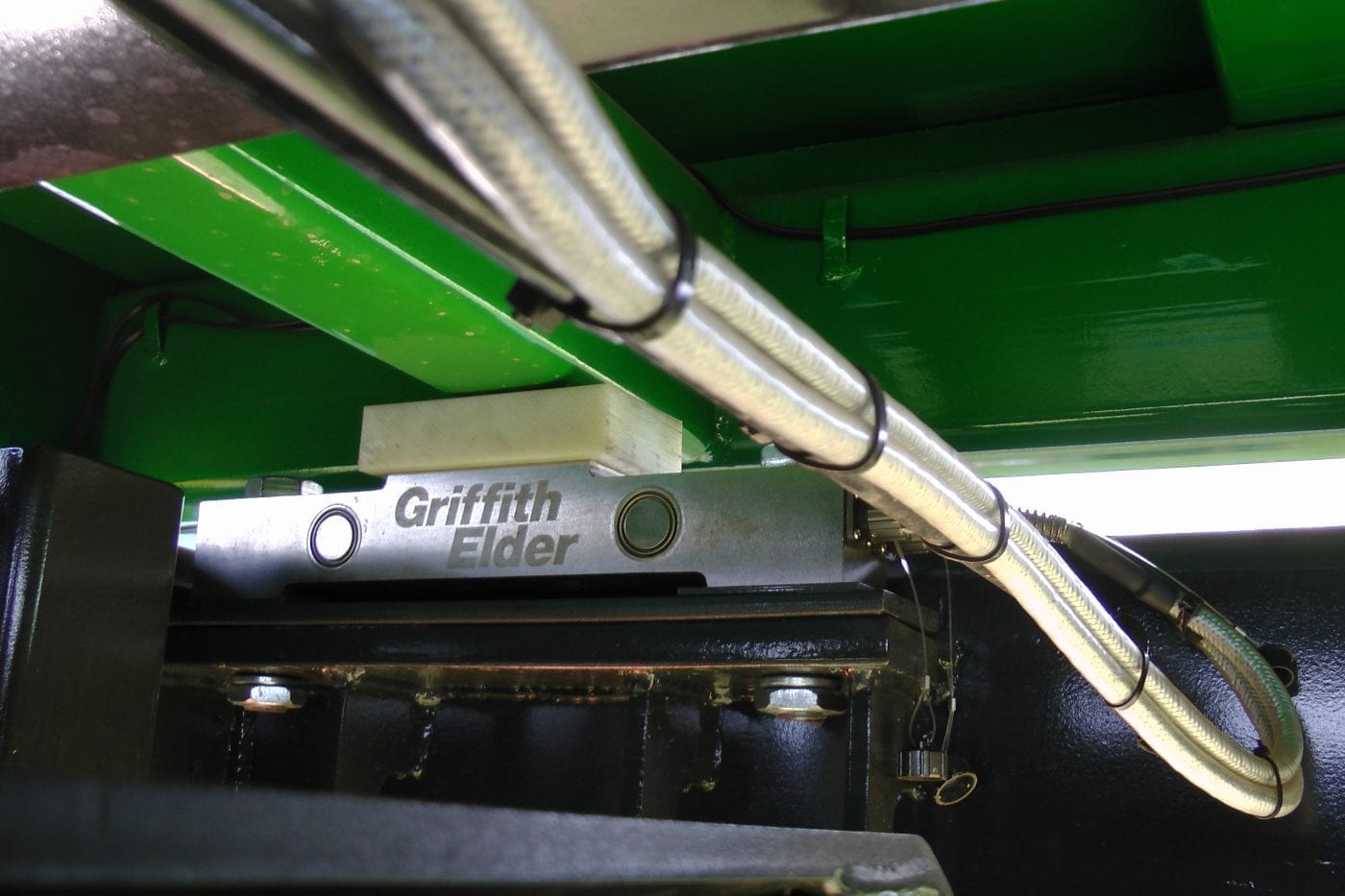

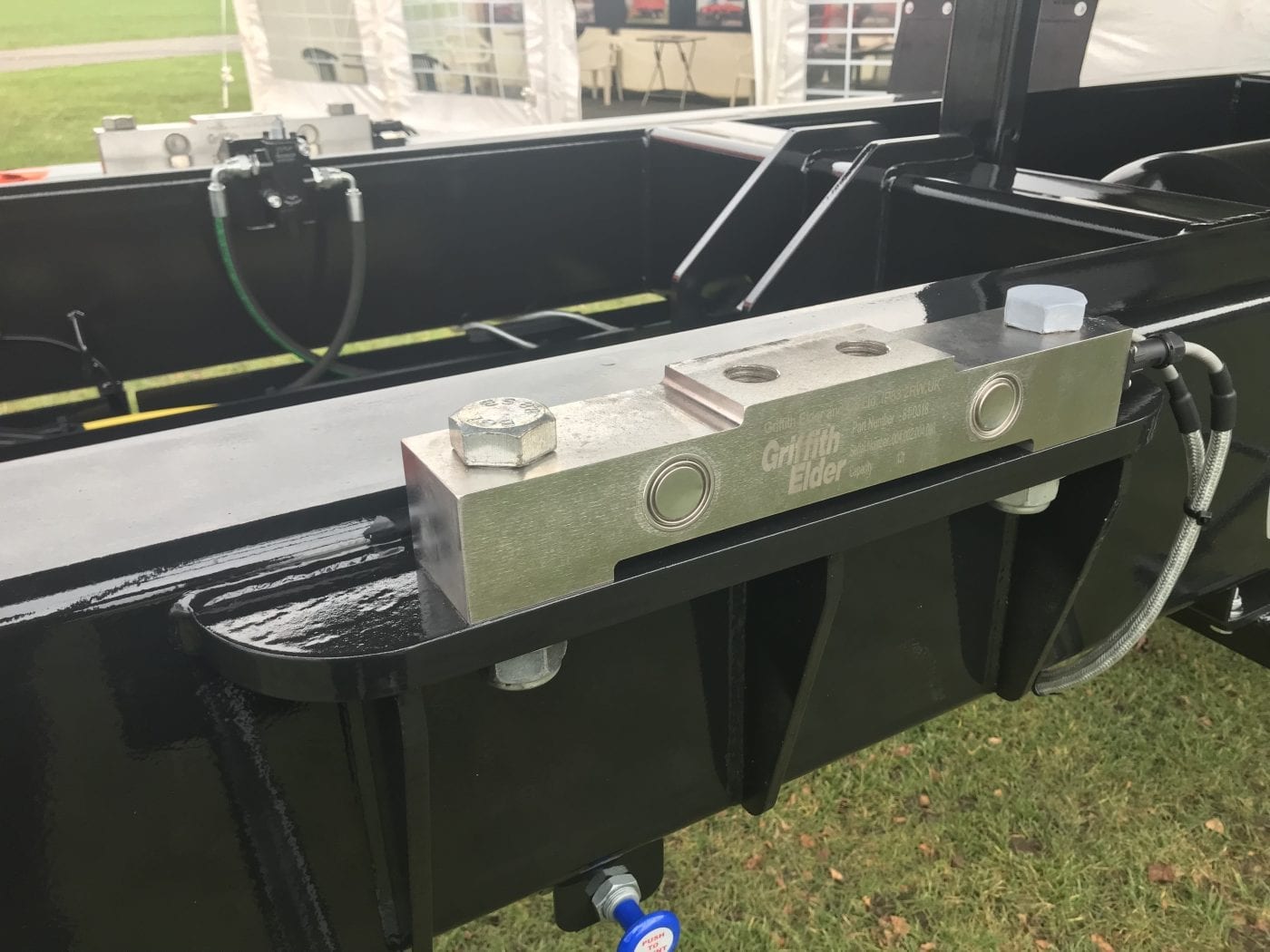

At the heart of the Trailer Weigher is a sophisticated weighing system that monitors the weight in the trailer. Four or six load cells detect the weight in the hopper. Load cells are available to suit most trailers, ranging from 500kg to 20’000kg capacities.

Operating a Trailer Weigher couldn’t be simpler. Make sure the indicator is switched on and zero the display when the trailer is empty. It is also possible to zero the trailer when it is full, so that the loss in weight records, instead of the gain in weight.

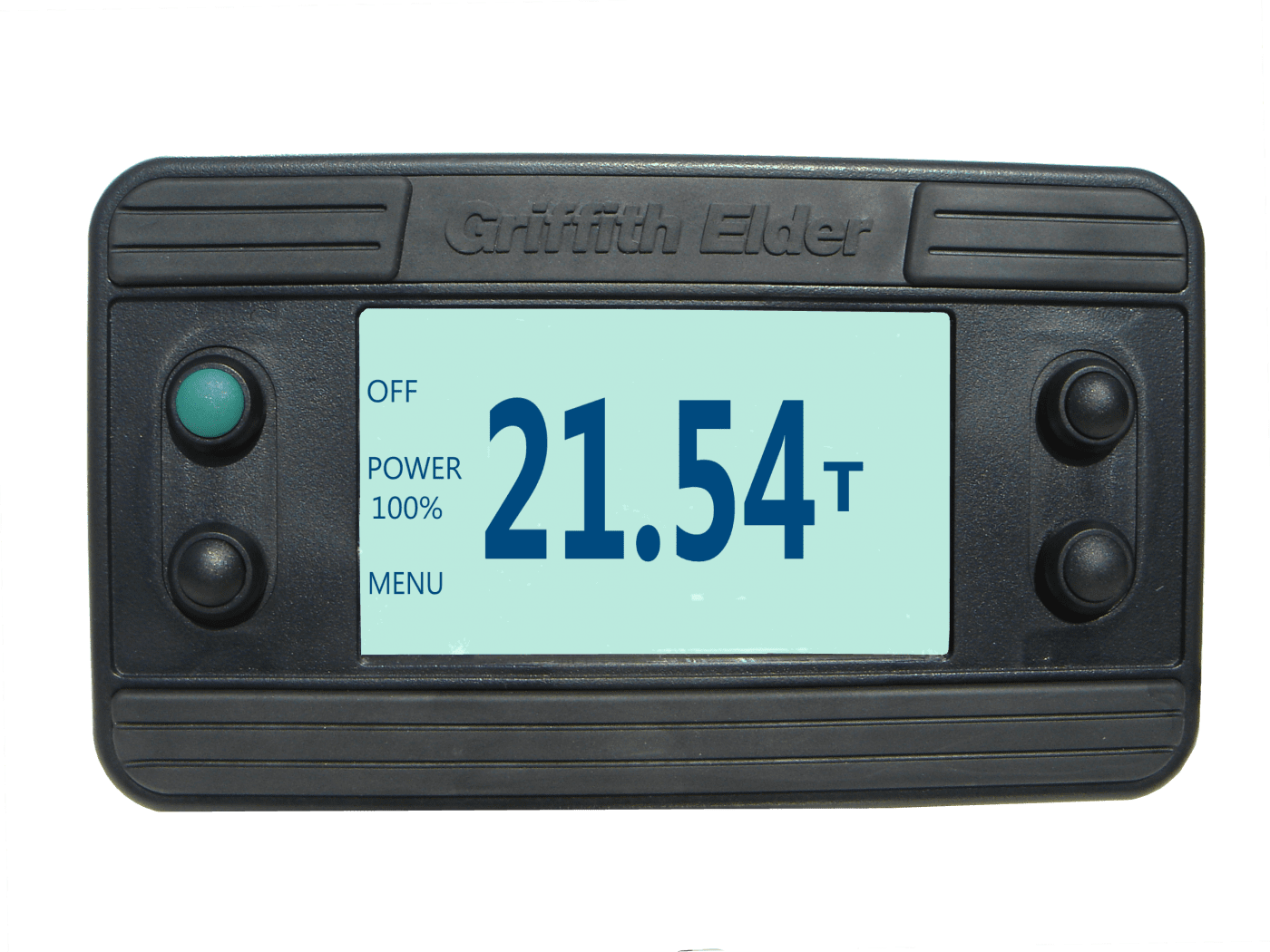

Accuracy of weighing is within 0.5% when stationary and 1% when moving. Our Weightel™ digital load cells are fully calibrated in the factory ready to use, meaning there is virtually no maintenance required. The load cells are robust and can stand the normal vibrations, shaking and knocks without losing accuracy. Weights can be viewed on the monitor when the trailer is stationary and whilst the trailer is in motion.
