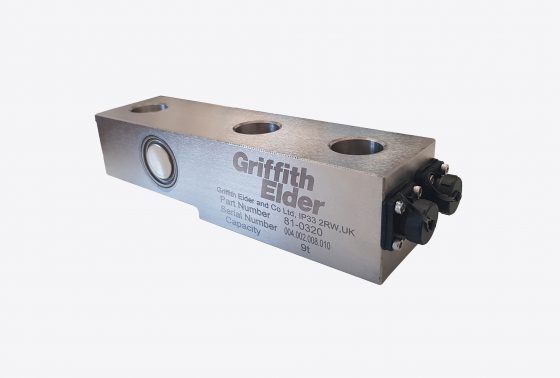

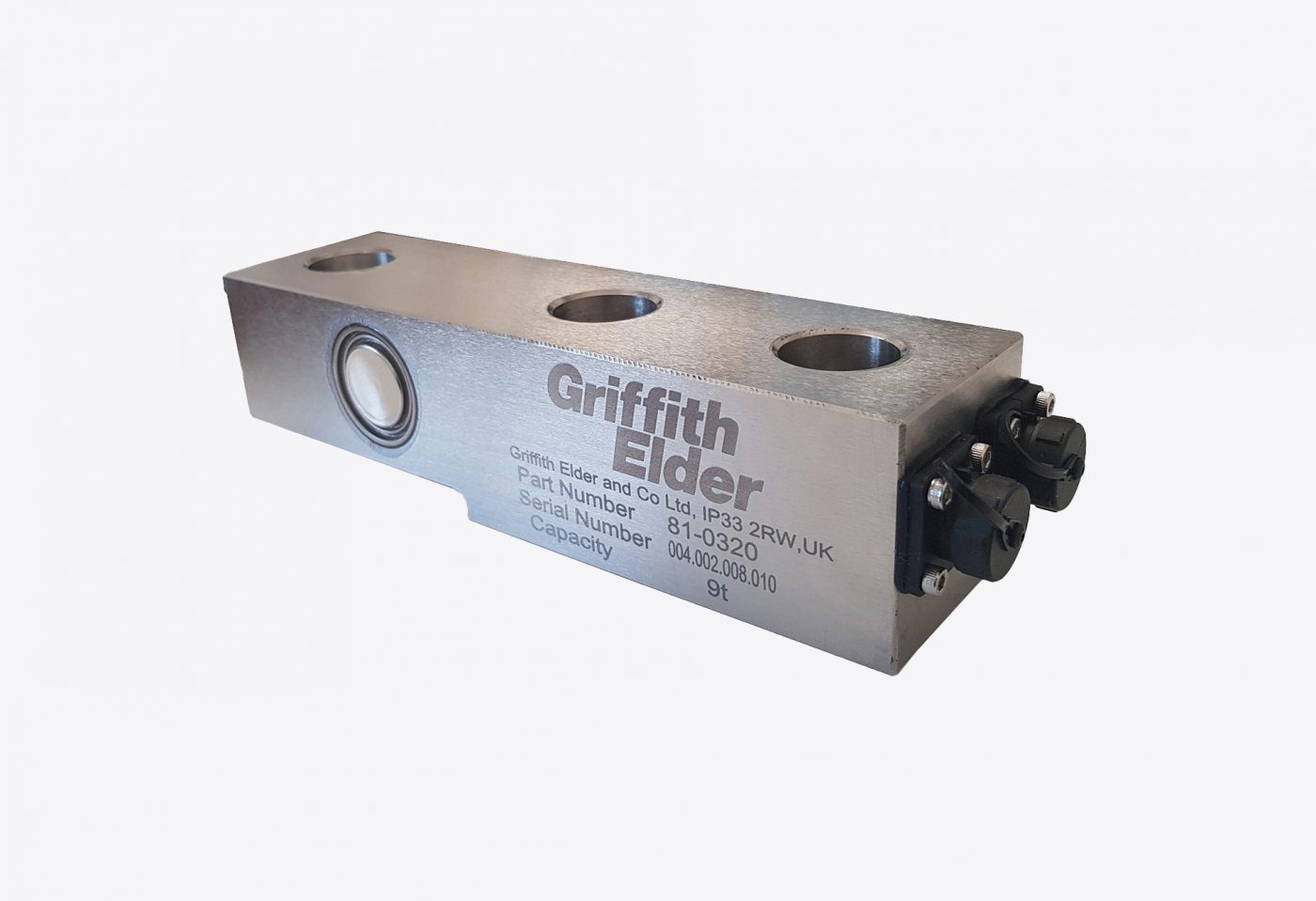

Shear Beam Load Cell

Contact us on: +44 (0)1284 719619 or sales@griffith-elder.com to find out more information about our spare parts.

Model:	SB: Shear Beam
Capacity:	1T, 3T, 6T, 9T, 12T
Material:	C: Carbon Alloy Steel S: Stainless Steel 17-4 PH
Type:	A: Analogue D: Digital
Temperature Range:	-40 to +70°C
Overlaod:	Safe: 150% Maximum: 300%
Cable:	A: 7 metres screened (23 feet)
Ingress Protection	Sealed to IP68
Excitation:	Recommended: 5V to 12V dc Maximum: 15V dc
Output at Rated Load	A: 2 mV/V ± 0.1%
